Second article of the blog series: Democratizing Manufacturing Analytics
In the first article of the blog series Democratizing Manufacturing Analytics, we explored how a Canonical Data Model (CDM) can democratize manufacturing analytics by transforming complex database relationships into intuitive, event-driven insights. In this second article, we will examine how this same event-driven foundation creates a seamless connection to one of manufacturing’s most transformative architectural patterns: the Unified Namespace (UNS).
Understanding the Unified Namespace
The Unified Namespace represents a paradigm shift in how manufacturing systems share and consume data. Unlike traditional point-to-point integrations that create brittle, complex webs of connections, UNS establishes a centralized, hierarchical information model that serves as a single source of truth for all manufacturing data.
Traditional manufacturing IT looks like a collection of Silos. MES talks to your ERP, your SCADA system manages equipment, your Quality Management System tracks defects, but they don’t really communicate with each other in real-time.
Each system has its own data format, its own timing, and its own way of describing the same manufacturing events.
UNS changes this.
It creates a single, shared language and communication channel where all your manufacturing data flows in real-time, using a standardized structure that every system can understand.
At its core, UNS is built around a Pub/Sub (Publish/Subscribe) messaging architecture, usually implemented using MQTT (Message Queuing Telemetry Transport). This creates a real-time, event-driven communication layer where systems publish data to standardized topics and consume only the information they need. The result is a decoupled, scalable architecture that can grow with your manufacturing ecosystem.
In UNS, the hierarchical topic structure mirrors manufacturing operations naturally. For example:
Enterprise/Site/Area/Line/Cell/Device/Tag
This structure aligns perfectly with ISA-95’s hierarchical model, creating immediate semantic clarity for anyone familiar with manufacturing standards. When a temperature sensor on SMT Line 1 publishes data, it goes to:
MyEnterprise/MySite/Production/SMT/SMTLine1/TemperatureSensor/CurrentValue
The Strategic Advantages of UNS
Real-Time Visibility: UNS transforms manufacturing from a batch-oriented, report-driven environment to a real-time, event-driven ecosystem. Instead of waiting for hourly reports or daily dashboards, operations teams receive immediate visibility into production performance, quality metrics, and equipment health.
Simplified Integration: Traditional manufacturing IT involves complex point-to-point integrations between MES, ERP, historians, and analytics platforms. Each integration requires custom development, testing, and maintenance. UNS eliminates this complexity by providing a standardized interface that all systems can publish to and consume from.
Scalability and Flexibility: Adding new systems to an UNS environment is straightforward. Whether it’s a new sensor, analytics platform, or business intelligence tool, it simply connects to the namespace and subscribes to relevant topics. No custom integration development required.
Vendor Independence: UNS reduces vendor lock-in by providing a standardized data exchange layer. Systems from different vendors can communicate seamlessly through UNS, giving manufacturers more flexibility in technology selection and reducing long-term technical debt.
Edge-to-Cloud Continuity: UNS architectures naturally support hybrid deployments, enabling seamless data flow from edge devices through plant-level systems to cloud analytics platforms. This creates a cohesive data pipeline that spans the entire manufacturing technology stack.
Why CDM Events Map Naturally to UNS
The beauty of Critical Manufacturing’s event-driven CDM is that it is already structured for UNS integration. Here is why the translation is remarkably straightforward:
Hierarchical Alignment: CDM events are built on ISA-95 hierarchical principles, which directly correspond to UNS topic structures. The enterprise/site/area/work center hierarchy in our events translates directly to UNS topic hierarchies.
Event-Driven Foundation: UNS is fundamentally event-driven, and the CDM is already structured around manufacturing events. There is no impedance mismatch between the two paradigms. A Material Event in Critical Manufacturing’s CDM becomes a material event in UNS with minimal transformation.
Semantic Consistency: Both, CDM and UNS, rely on standardized manufacturing terminology. The resource IDs, material definitions, and operation types that are standardized in the CDM translate directly to UNS topic structures without requiring semantic mapping.
Temporal Alignment: Manufacturing events are inherently time-based, and both, CDM and UNS, handle temporal data naturally. Event timestamps, sequence numbers, and temporal relationships are preserved seamlessly in the translation.
Seamless UNS Integration: Built-In, Not Bolt-On
One of the most compelling aspects of CDM-to-UNS integration is that it is not a theoretical future capability. It is available today. Critical Manufacturing MES ships with a built-in MQTT driver, making UNS connectivity a configuration task rather than a development project.
This built-in capability transforms what could be a complex integration challenge into a straightforward workflow design exercise. Instead of writing custom code, developing APIs, or building middleware, connecting to UNS becomes as simple as creating a graphical workflow that:
1 – Hooks into CDM Events: The workflow engine connects directly to the CDM event stream, receiving real-time notifications as manufacturing events occur.
2 – Selects Relevant Data: Through an intuitive interface, you choose which CDM information to include—material IDs, timestamps, operation results, quality metrics, or any combination that serves your UNS consumers.
3 – Routes to MQTT Brokers: The selected data is automatically formatted and published to any MQTT broker supporting your existing UNS installation.

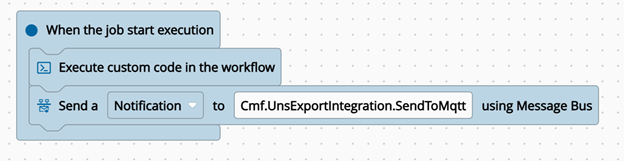

Visual Workflow Design: No Code Required
The graphical workflow designer eliminates the traditional barriers to UNS integration. Production engineers, who understand manufacturing processes better than anyone, can design and deploy UNS integrations without requiring software development expertise. For example, creating a workflow that publishes material tracking events to UNS might look like:
CDM Material Event → Filter (TrackIn/TrackOut only) → Format for UNS → Publish to MQTT Topic
This visual approach means that the same teams who configure production recipes and quality checks can also configure UNS data flows. The workflow engine handles all the technical complexity, i.e. MQTT connection management, message formatting, error handling, and retry logic, while presenting a manufacturing-friendly interface.
Flexible Topic Mapping
The built-in MQTT driver supports flexible topic construction, allowing you to map CDM events to UNS topics that align with your specific namespace design. Whether you prefer:
Enterprise/Site/Area/Line/Material/Operation
or
Site/ProductionLine/Process/MaterialTracking
The workflow engine can construct topics dynamically based on CDM event data, ensuring seamless integration with your existing UNS architecture.
Real-Time Performance
Because the MQTT driver is built into the MES core, there is no additional latency introduced by external integrations. CDM events can be published to UNS within milliseconds of occurring, enabling truly real-time manufacturing visibility. This performance is crucial for time-sensitive applications like:
Immediate Quality Alerts: Inspection failures can trigger immediate notifications to downstream operations
Real-Time OEE Monitoring: Production efficiency metrics update continuously as events occur
Instant Material Genealogy: Track material movements and transformations across the entire production network
Enterprise-Ready Reliability: The built-in MQTT driver includes enterprise-grade features essential for manufacturing environments:
Connection Resilience: Automatic reconnection and message queuing during network disruptions
Security Integration: Support for TLS encryption and authentication mechanisms
Message Persistence: Configurable message retention to ensure critical events aren’t lost
Load Balancing: Ability to distribute messages across multiple MQTT brokers for high availability.
Implementation: Bridging CDM and UNS
The elegance of this approach is that CDM implementation doesn’t require UNS adoption, and UNS integration doesn’t require CDM redesign. This flexibility provides significant strategic advantages:
Standalone CDM Value: Organizations can implement Critical Manufacturing’s CDM and immediately gain the analytics democratization benefits described in Part 1. The event-driven structure improves data accessibility and insight generation regardless of UNS adoption.
Evolutionary UNS Integration: When organizations decide to implement UNS, whether as a new initiative or to enhance existing infrastructure, the CDM events can be seamlessly published to the namespace. This evolutionary approach reduces implementation risk and allows for gradual adoption.
Existing UNS Enhancement: Organizations with existing UNS implementations can integrate Critical Manufacturing’s CDM events to enrich their namespace with high-quality, analytically-ready manufacturing events. Instead of raw sensor data or fragmented system outputs, they gain access to contextualized, business-meaningful events.
The technical implementation is straightforward. The CDM workflow engine can be configured with UNS publishing capabilities that:
- Transform CDM events into appropriate MQTT messages
- Map ISA-95 hierarchies to UNS topic structures
- Maintain message quality and delivery guarantees
- Handle authentication and authorization for UNS access
- Provide configurable filtering and routing based on event types and priorities
Real-World Benefits of CDM-to-UNS Integration
Immediate Analytics: Quality engineers can subscribe to real-time inspection results and automatically trigger corrective actions. Production managers can monitor efficiency metrics as they happen, not hours later.
Predictive Maintenance: Equipment events from the CDM can feed directly into predictive maintenance algorithms through UNS, enabling proactive maintenance scheduling based on real-time condition data.
Supply Chain Integration: Material events can be consumed by ERP systems and supply chain partners through UNS, creating end-to-end visibility from raw materials to finished products.
Operator Empowerment: Shop floor displays and mobile applications can subscribe to relevant UNS topics, providing operators with real-time context about their work assignments, quality requirements, and performance metrics.
Implementation Considerations
Topic Design: Careful consideration of topic hierarchy is essential. We recommend starting with ISA-95 hierarchies and evolving based on actual consumption patterns.
Data Volume Management: Manufacturing environments generate significant data volumes. Implementing appropriate filtering, aggregation, and retention policies is crucial for maintaining UNS performance.
Security and Access Control: UNS implementations must include robust security measures, including topic-level access control, encryption, and audit logging.
Change Management: Like any architectural transformation, UNS adoption requires organizational change management. Teams need training on event-driven thinking and real-time data consumption patterns.
Looking Forward: The Connected Manufacturing Future
When you combine CDM’s standardized events with UNS’s real-time messaging, you get something powerful. True real-time manufacturing intelligence that spans your entire operation.
By democratizing data access through Critical Manufacturing’s CDM and enabling real-time connectivity through UNS, we are building the infrastructure for the next generation of manufacturing intelligence.
This architecture enables advanced scenarios like AI-driven quality prediction, autonomous production optimization, and real-time supply chain coordination. Most importantly, it maintains the accessibility and industry-standard compliance that made CDM successful while adding the real-time capabilities that modern manufacturing demands.
The path from complex database schemas to real-time, democratized manufacturing intelligence isn’t just a technical evolution. It’s a transformation that puts the right information in the right hands at the right time, enabling data-driven manufacturing that defines competitive advantage in the digital age. It’s also about responsiveness. Problems are identified faster, opportunities are seized quicker, and your entire operation becomes more agile and coordinated.
CDM is what you say. UNS is where you say it.
